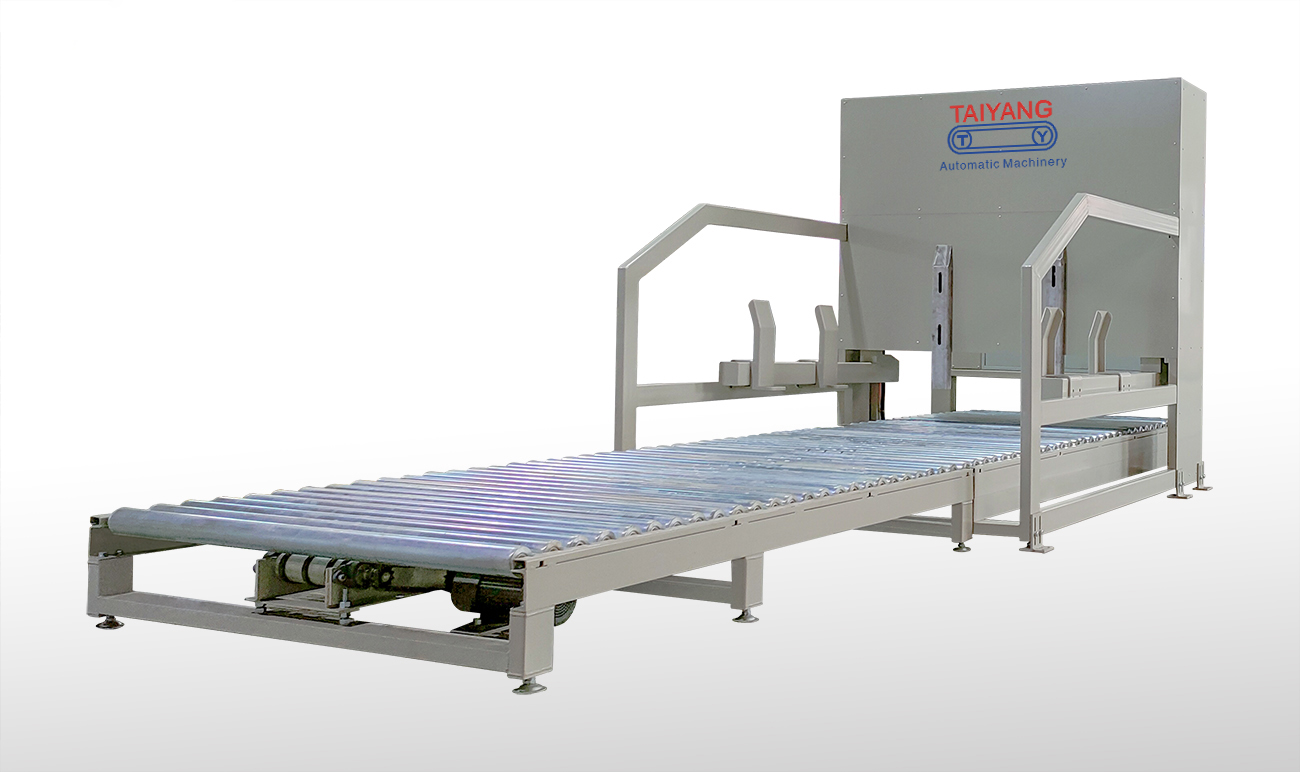

The Pneumatic TaiYang Pallet Dispenser is a high speed, pneumatic pallet dispenser designed to dispense pallets onto a Load Former. It is equipped with a PLC (Programmable Logic Controller) that is connected to several infrared photo electric eyes. When the chamber is empty the PLC opens the safety doors and moves single stacks of pallets, via automated conveyor, into the chamber and then dispenses them at specific time intervals onto the out-feed conveyor. The TaiYang will accept pallet stacks up to twenty high in various sizes and conditions.
Product Advantages:
- Fully automatic feeding pallet
- Reduce the intensity of labor and cost
- Continuously improve working efficency
Pallet dispenser working principle:
1. Place the pallet neatly and neatly on the pallet of the same specification with the finished appearance;
2. The pallet separation mechanism hooks the second pallet of the lower layer to rise, and separates from the first pallet of the lower layer;
3. The roller conveyor starts to transport the separated pallets to the next station;
4. After the pallet at the supply pallet completely leaves the station, the lifting mechanism hooks the pallet and descends to the conveyor line again;
5. After the fork is opened, it rises to the middle position and hooks the second pallet of the lower layer again to separate it from the first pallet;
6. Repeat this process until all the pallets have been disassembled, the equipment stops running and a buzzer sounds a warning to remind you to add pallets.
Pallet centering device

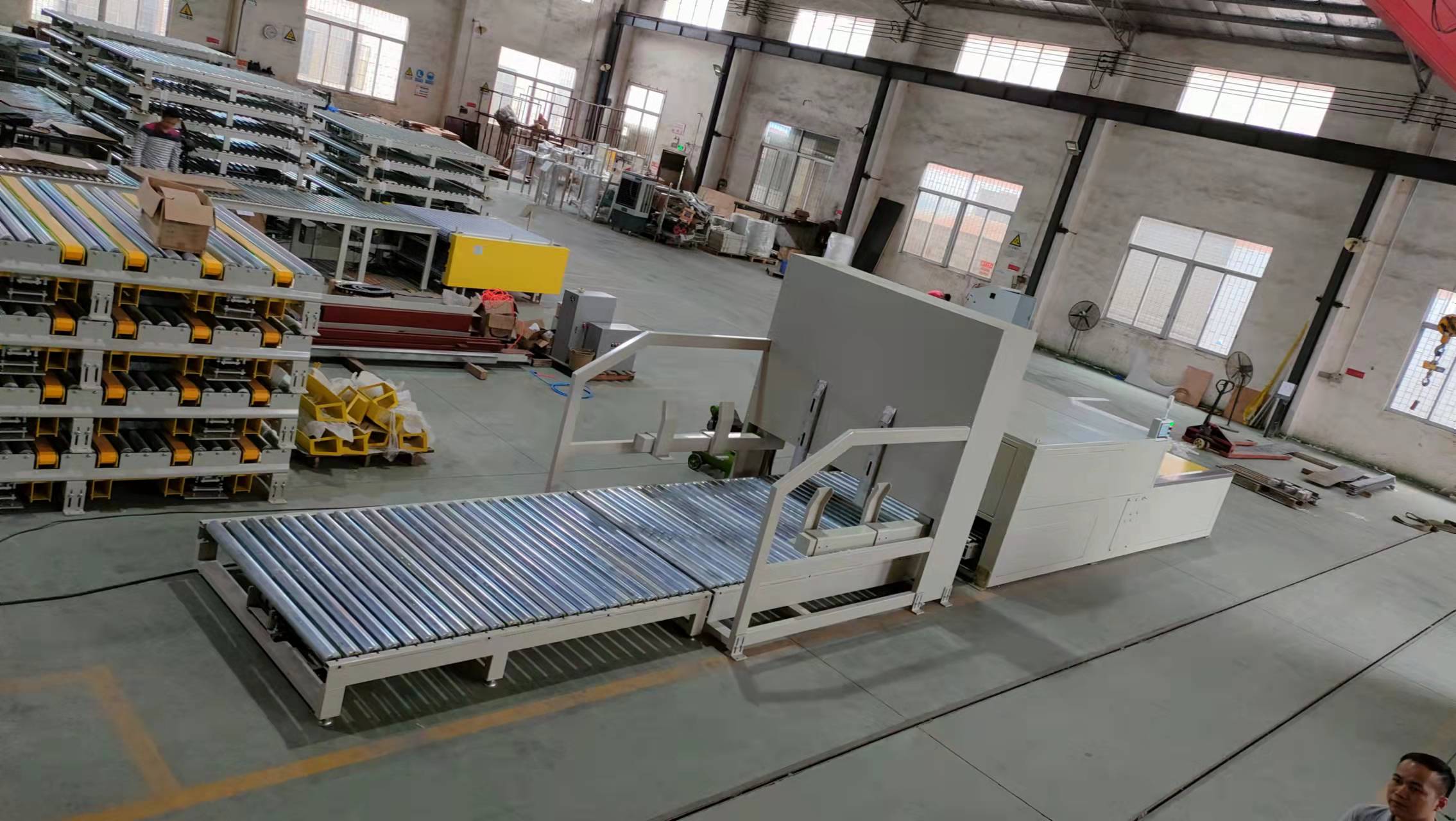

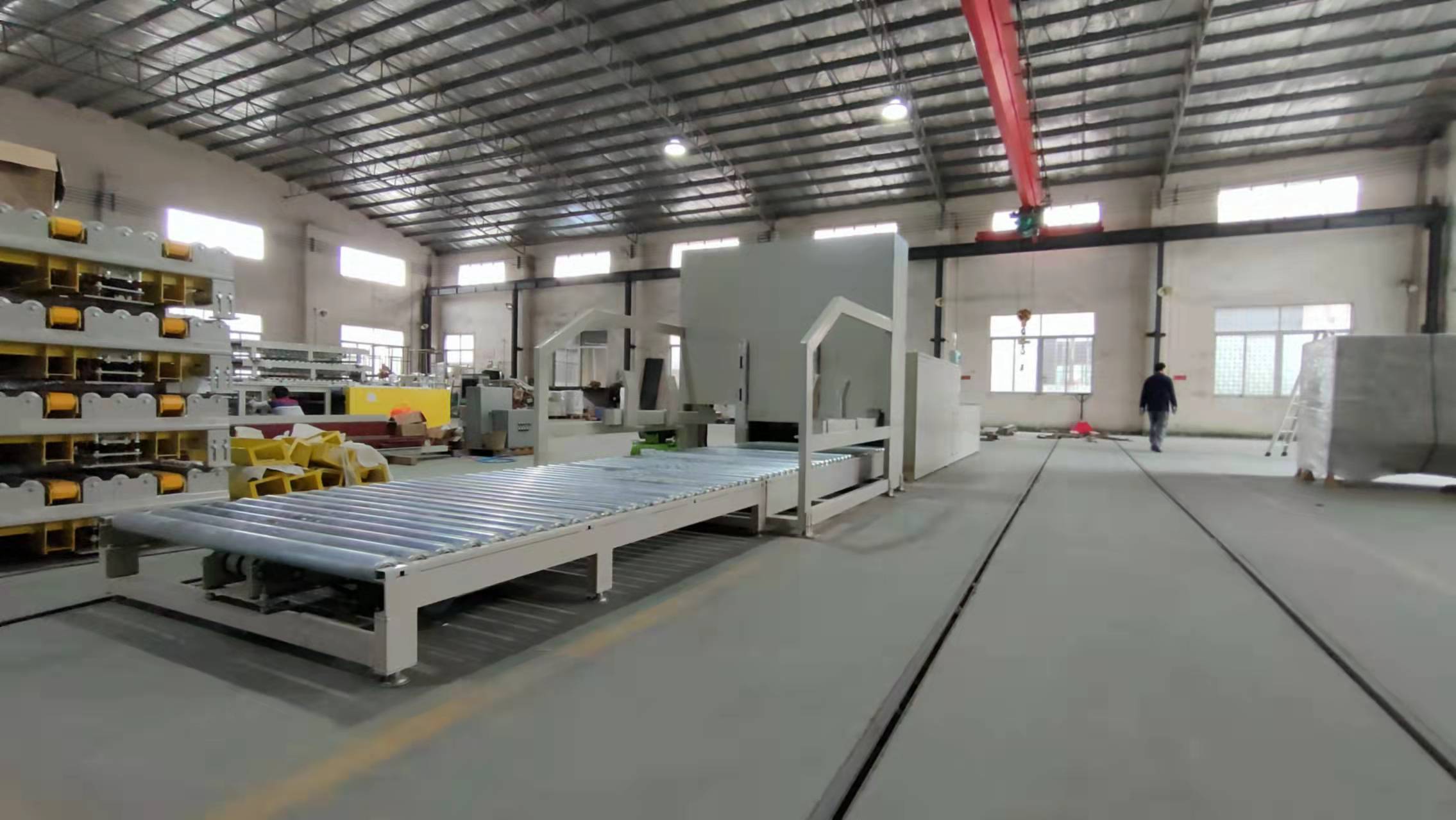

Our Workshop
